Kawasaki Ki-28
"Prototype" & "Over China"



AZ Models, 1/72 scale

S u m m a r y

Catalogue Number: AZ Models No. AZ 7247 Ki-28 Prototype and
AZ 7248 Ki-28 “Over China”
Scale: 1/72
Contents and Media: Both kits have 18 tan coloured plastic parts on one sprue, 4 well cast resin bits on two casting blocks, 10 PE parts on one fret, 2 vac-formed canopies, decals for one aircraft in AZ 7247 and two in AZ 7248 plus a 4 page instruction sheet with parts plan, 15 build drawings and an Agama/Gunze Sangyo colour chart. Paint/decal instructions are on the box rear and there is no history.
Price: From 12.17 available online from Hannants
AUD$28.00 available online from NKR Models
and specialist hobby retailers worldwide.
Review Type: FirstLook
Advantages: Interesting and rare subject, well moulded plastic with fine engraved panel detail with just a small amount of flash and no ejector pin marks on exposed surfaces, good detail inside and out, nice decals, resin and PE.
Disadvantages: Limited run nature of the kit means that modelling skills will be requiredMulti media so not for beginners, vac-formed canopy may put some people off and no history.
Recommendation: Highly recommended for those who like Prototypes and Oddities.



Reviewed by Glen Porter


HyperScale is proudly supported by Squadron.com



Background



In 1935, the Japanese Army held a competition to replace the Kawasaki Ki-11. It included the Kawasaki Ki-28, Nakajima Ki-27 and the Mitubishi Ki-33. The winner was the Nakajima Ki-27 and therefore the Kawasaki Ki-28 never progressed past the prototype stage. This means the decals in the second kit (AZ 7248) are fictitious as the aircraft never flew in combat.

The Ki-28, code named Bob by the allies, was a single seat, single engine fighter with a liquid cooled V-12 power plant which I'm told was a license built version of the BMW 9 engine from Germany. The fuselage looked very similar to the preceding Ki-11 but it lost the competition because it wasn't as maneuverable as the lighter Ki-27.





FirstLook



AZ Models is another high quality short-run model manufacturer from the Czech Republic. I 'm sure, if all of the rest of the worlds model companies shut down tomorrow, we would still be well served by just those from the Czech Republic.

The similarity between this manufacturer (AZ Models) and RS Models is uncanny. In fact the main difference seems to be RS do injected canopies and AZ supply vac-formed ones but I can find no connection except that they both hail from the same country.

These two kits are identical except for the canopies, decals and boxes. Everything else, plastic, resin, PE and even instructions are the same. The instructions have both kit numbers on them and show both canopies and decals.

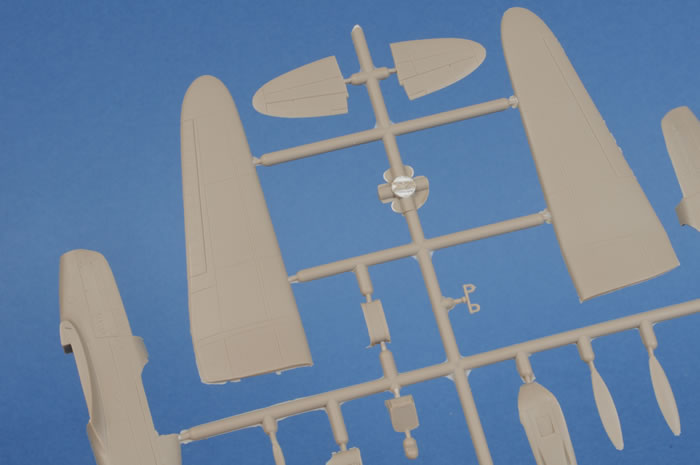

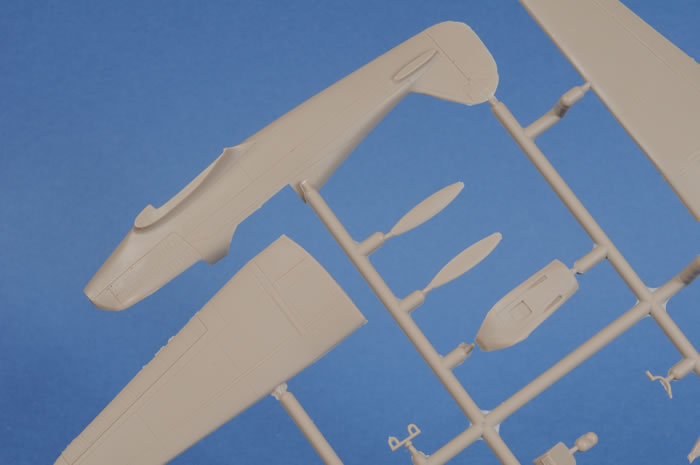

The nicely detailed tan plastic, very similar to that from Eduard, is all on one sprue with very delicate panel detail but with a couple of small areas of flash and a few ejector pin marks on the inside which may interfere with assembly.

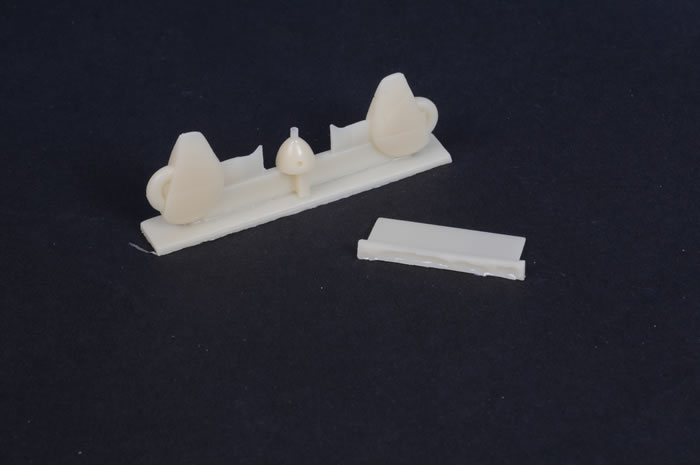

There are only four resin parts, two spatted undercarriage legs with the wheels moulded into the spats, a spinner and the cockpit floor.



  • AZ Model 1/72 scale Ki-28 Bob Review by Glen Porter: Image
  • AZ Model 1/72 scale Ki-28 Bob Review by Glen Porter: Image
  • AZ Model 1/72 scale Ki-28 Bob Review by Glen Porter: Image
  • AZ Model 1/72 scale Ki-28 Bob Review by Glen Porter: Image
  • AZ Model 1/72 scale Ki-28 Bob Review by Glen Porter: Image
  • AZ Model 1/72 scale Ki-28 Bob Review by Glen Porter: Image
  • AZ Model 1/72 scale Ki-28 Bob Review by Glen Porter: Image
  • AZ Model 1/72 scale Ki-28 Bob Review by Glen Porter: Image
  • AZ Model 1/72 scale Ki-28 Bob Review by Glen Porter: Image
Thumbnail panels:
Now Loading

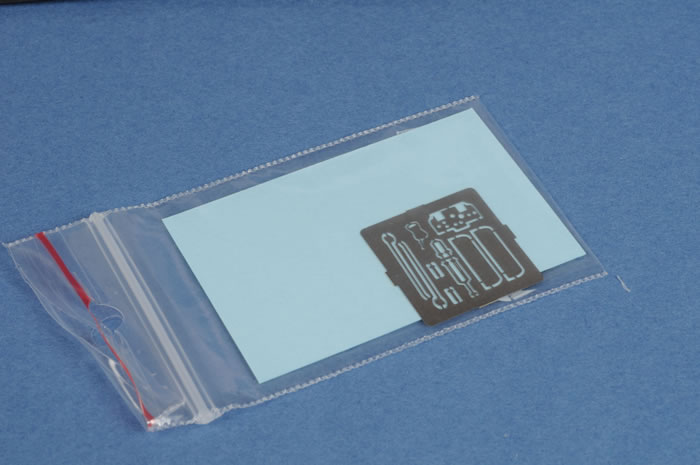

The small PE fret has no name on it so the manufacturer can't be identified but it looks well done with a Sutton type shoulder harness, lap belts, instrument panel, two radiator matrixes, throttle quadrant and two radiator supports.

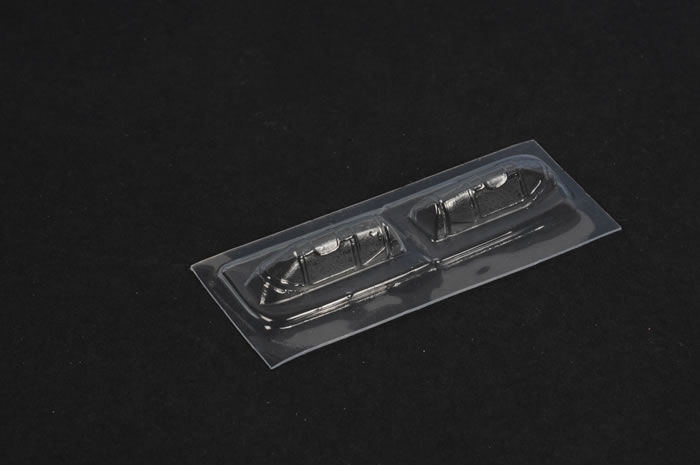

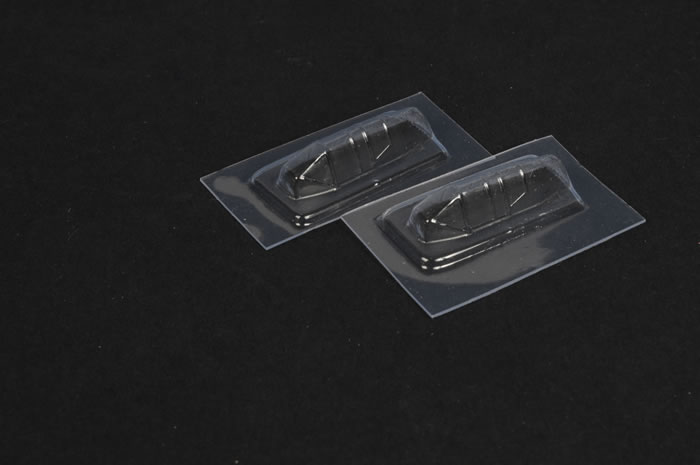

There are two vac-formed canopies in each kit with the pair for the prototype having a cut-out above and beside the pilots head. Both types are shown in the instructions.

The main area where the two kits differ is in the decals. The prototype (AZ 7247) has markings for only one aircraft which consist of six national markings and six stencils on an overall light grey aircraft.





The other kit (AZ 7248) has markings for two aircraft but as I said above they are fictional as the Ki-28 never flew operationally. One, like the prototype, is in overall light grey but with red markings flown by Capt. Tateo Kato, early 1937, while the other has dark green and brown uppers over light grey below with markings supposedly for 77th Sentai, 3rd Chutai, China 1939. There are recommendations for the light grey in both kits but not for the green and brown but as they are both fictitious, I guess it doesn't matter.





Like the RS Models instructions, these are also a bit basic and in some places some what vague but an experienced modeller should be able to work it all out.





Conclusion



These AZ Models kits are way superior to many other short-run kits so if you're into prototypes, obscure Japanese aircraft or just want some thing different, AZ Models may be the way for you.



Highly Recommended to experienced modellers and Prototype nuts.

Thanks to Legato  / AZ Models for the sample


Review Text Copyright 2008 by Glen Porter
