Oeffag Albatros

Pheon Models, 1/48

S u m m a r y :

Catalogue Numbers & Prices:

#48014 Volume 1 £12.75
#48015 Volume 2 £12.75
#48016 Volume 3 £17.50
#48016b (painted camouflage only) £7.50

Scale:

1/48

Contents and Media:

Waterslide decals, colour profiles, instructions

Ordering:

Available only direct from pheon.models@hotmail.co.uk
Post & packing:
1st Class £3.60 to the UK & Europe, £4.95 to the rest of the world.
2nd Class: £2.52 to the UK & Europe, £2.70 to the rest of the world.
Payment by Paypal.

Review Type:

First Look

Advantages:

Extensive selection of markings, well researched. Characteristic narrow waisted crosses included.

Disadvantages:

The sworl camouflage in Volume 3 should go around the cross markings

Conclusion:

Tour de force of the subject. Very colourful subject, top quality package

Reviewed by James Fahey


HyperScale is proudly sponsored by Squadron.com


FirstLook



The latest release from Pheon Models is for Eduard’s Oeffag Albatros 253 “super kit” in 1/48 scale which has been very well received by WWI modellers. This kit uses Eduard’s new mould-making technology, bringing a whole new level of detail.

Other Oeffag Albatros kits in 1/48 scale include Eduard’s earlier 153 version, a Blue Max kit which is accurate and nicely detailed (and still available from Freightdog Models), and a much older Glencoe kit from the 1980s.




The Aircraft

The Austro-Hungarian manufacturer Oeffag built approximately 526 German Albatros D.III under license. There were three main series: 53, 153 and 253, using the 185, 200, or 225 hp Austro-Daimler engines respectively.

Oeffag Albatros were an improvement over the German Albatros DIII due to modifications made to the lower wing which largely solved the structural problems and fitting of more powerful Austro-Daimler engine. Unique to the Oeffag version also was the winter cowling for cold weather operations which fully enclosed the cylinder heads.

Beginning with aircraft 112 of the series 153 production run, Oeffag introduced a new rounded nose that eliminated the spinner. Wind-tunnel tests showed that the simple rounded nose improved propeller efficiency and raised the top speed by 9 mph. In service, the Oeffag aircraft proved to be popular, robust, and effective – the first truly modern fighter for the Austro-Hungarian airforce.




The Decals

Across Pheon’s three volumes there are a massive *43* markings options covering all versions of the Oeffag D.III: the 53 series, the 153 series and the 253 series. All of these can be built from the parts included in the Eduard Oeffag 253 kit. Volume 1 includes a marking option for the Oeffag D.II which could also be built from the kit with some kit-bashing of the wings with an Albatros DII. A slight modification is needed  to represent the two-valve arrangement for the 185hp engine which features in a few of the options.





Pheon have avoided any duplication of subjects with Eduard’s Oeffag Albatros 253 kit. Three of Eduard’s 153 markings are duplicated.





With such a broad selection, modellers may well be stuck for choice. I suggest you either:

  • Buy all three sets

  • Look through to find a colour scheme (or schemes) that appeals to you, or

  • Choose a famous pilot that appeals to you

Certainly the top scorers from the Luftfahrtruppen are well represented. Here is a list of the pilots with 10 or more confirmed victories that are included in the three sets:

Godwin Brumowski (top scorer with 35 victories) 4 different aircraft
Julius Arigi (#2 with 32 victories)
Frank Linke-Crawford (27 victories)
Josef Kiss (19 victories)
Franz Gräser (18 victories) 3 aircraft
Eugen Bönsch (16 victories) 3 aircraft
Ernst Strohschneider (15 victories)
Kurt Gruber (11 victories)
Friedrich Navratil (10 victories)

Pheon decals are printed by Fantasy Printshop in the UK. Quality is excellent, register is perfect and they lay down beautifully.





Use of Micro Set softening solution is not recommended (nor required).




Iron Cross Markings

Pheon have provided the iron cross markings in the specific Oeffag style which is apparent in almost all photographs of these aircraft - notably thinner than the design specified by the Austro-Hungarian authorities. The crosses in the Eduard kit are wider waisted.

Enough crosses in both outlined and plain designs have been included on each sheet to complete four models.




Sworl Camouflage (‘Brumowski Distribution’)

Volume 3 includes ‘sworl’ camouflage decals 'cookie-cut' to fit the Eduard kit, enough to complete two aircraft. Additional sets of the camouflage only are available separately as 48016b for £7.50.

It was standard practice for Austro-Hungarian aircraft to be delivered in clear-doped linen and varnished plywood until well into 1918 and this was true for the Oeffag-built Albatros D.II and D.III fighters. Some unit commanders and acceptance parks applied their own painted finishes. The late Martin O’Connor, the leading A-H aviation historian, has called the ‘sworls’ style the ‘Brumowski Distribution’ as it characterises aircraft flown by Godwin Brumowski’ and his unit during the time he commanded it.

A base colour was applied to those parts of the aircraft that were visible from above and this was covered with marks in two distinct styles:

a) comma shaped sworls /curlicues applied with hard edges using a brush, and

b) less distinct smudges/blotches applied with rags or sponges

Initially the base colour was a fairly light, bright green for the 53 series Oeffag Albatros with the markings in mustard yellow. By the time the 153 Oeffag Albatros were introduced the base colour had become a darker green.

There is a minor issue with the sworl decals - in practice the painters carefully applied the sworls around the crosses which were already in place. Pheon have not left space for the crosses, which must be applied over the top of the sworls. For the most accurate finish some careful hand painting will be required to cover those sworls which are partly overlapped.

Brumowski actually had one of his all red aircraft, 153.52, smeared *all over* with smudges/blotches – this is the subject of one of the Eduard markings options in the Oeffag 153 kit. It would make an impressive model although it would take three sets of the sworl decals to provide sufficient coverage according to Pheon.




“Summer Leaf” Camouflage

Three of the aircraft in Volume 1 are finished in a style of camouflage that has come to be called Summer Leaf. This was a dense pattern of paint splotches apparently applied with a rag over the plain finished upper and side surfaces. Pheon provide little guidance on these colours other than “two tones of green and of green and ochre colours”. This is because there is little guidance to be had! The source of many of Dr Martin O’Connor’s very specific colour references has subsequently been discredited.




Instructions

The 10 page A5 sized booklet follows Pheon’s standard layout: an interesting service history, comments on the kit, general colouring notes, references and decal application guide.

The individual pilot and aircraft details which normally feature in Pheon’s instruction booklets were not ready in time for the decals’ release at the UK nationals in Telford. At the time of writing Rowan is finishing this extra information and it will be included in future sets (and made available to existing purchasers).



  • Pheon Oeffag Albatros Vols I, II and III Review by James Fahey: Image
  • Pheon Oeffag Albatros Vols I, II and III Review by James Fahey: Image
  • Pheon Oeffag Albatros Vols I, II and III Review by James Fahey: Image
  • Pheon Oeffag Albatros Vols I, II and III Review by James Fahey: Image
  • Pheon Oeffag Albatros Vols I, II and III Review by James Fahey: Image
  • Pheon Oeffag Albatros Vols I, II and III Review by James Fahey: Image
  • Pheon Oeffag Albatros Vols I, II and III Review by James Fahey: Image
  • Pheon Oeffag Albatros Vols I, II and III Review by James Fahey: Image
  • Pheon Oeffag Albatros Vols I, II and III Review by James Fahey: Image
  • Pheon Oeffag Albatros Vols I, II and III Review by James Fahey: Image
  • Pheon Oeffag Albatros Vols I, II and III Review by James Fahey: Image
  • Pheon Oeffag Albatros Vols I, II and III Review by James Fahey: Image
  • Pheon Oeffag Albatros Vols I, II and III Review by James Fahey: Image
  • Pheon Oeffag Albatros Vols I, II and III Review by James Fahey: Image
  • Pheon Oeffag Albatros Vols I, II and III Review by James Fahey: Image
  • Pheon Oeffag Albatros Vols I, II and III Review by James Fahey: Image
  • Pheon Oeffag Albatros Vols I, II and III Review by James Fahey: Image
Thumbnail panels:
Now Loading

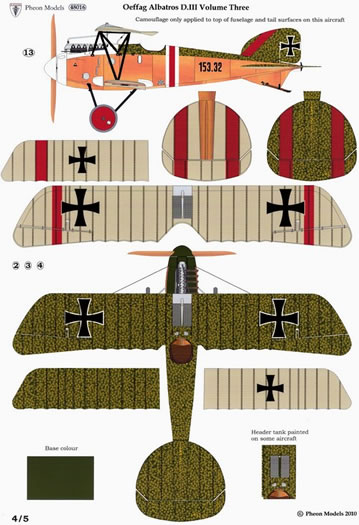

Full Colour Decal Placement Guides

Marking options are featured in full colour on five A4 sized sheets of glossy photo paper showing decal placements (side profiles and top views). Very nicely done.





Conclusion



Oeffag Albatros colour schemes make ideal subjects for after-market decals, being very colourful and interesting. Pheon must be congratulated for such a comprehensive selection of markings. Combined with the beautiful Eduard Oeffag kit these decals will produce a stand-out model.

Highly Recommended.


An updated Pheon catalogue is available here:
http://www.britmodeller.com/forums/index.php?showtopic=34793

Available only directly from Pheon by email: mailto:pheon.models@hotmail.co.uk.

Thanks to Pheon Models for the review samples.


available from pheon.models@hotmail.co.uk
