Spitfire Mk.IX Engine

Eduard BRASSIN, 1/72 scale


S u m m a r y :

Catalogue Number:

Eduard BRASSIN Item No. 672126 - Spitfire Mk.IX Engine

Scale:

1/72

Contents & Media

26 resin parts and one PE fret with seven parts.

Price:

Available on-line from these stockists:

Click for currency conversion.

Review Type:

First Look.

Advantages:

Great detail, high quality production, developed in parallel with the kit it is intended to compliment.

Disadvantages:

Packaging should mention it is not strictly suitable for use with Eduard’s Spitfire F Mk.IX kit.

Conclusions:

Eduard’s Spitfire Mk.IX engine is a little gem, and makes for a nice stand-alone model in its own right.

I think Eduard should have indicated its suitability for Mk.IXc & e kits, but not the early F Mk.IX.

This engine is highly recommended for those who like their models to bare all.


Reviewed by Mark Davies


Eduard Brassin’s 1/72 TER Sets are available online from Squadron.com



FirstLook



The Contents

The parts come in a small and comparatively flimsy flip-top box, but they are very well protected inside a sandwich of foam and enclosed by re-sealable bags. The instructions are folded and curved within the box, printed in colour on matte finish paper, and can be viewed or downloaded from Eduard’s website by clicking here. A parts map is provided and the instructional drawings are nicely rendered. Colour call-outs are cross referenced to Gunze Sangyo’s Aqueous and Mr. Color paint ranges.





This CAD illustration also gives clear picture of the parts breakdown.





The casting of the resin is flawless, with super-crisp detail, and easily removed casting blocks; although care is still required, especially with the smaller pieces. The PE parts are also produced to Eduard’s usual high standards.







The Kit

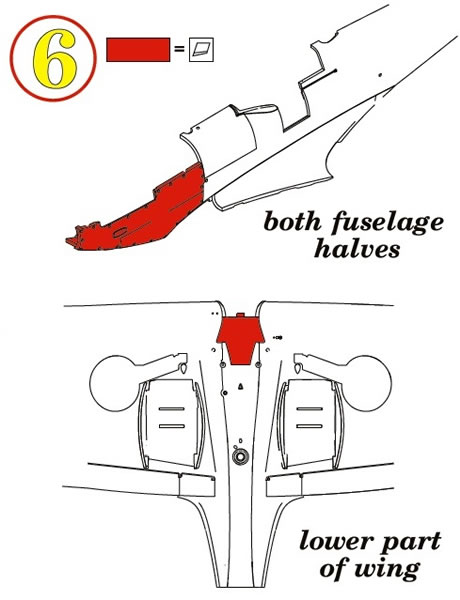

The engine set and Eduard’s Mk.IX Spitfire kit were developed in parallel, and designed to fit one-another from the outset. However, some surgery to the Spitfire kit is still required as the cowl panels and a section of main spar must be removed, as must a forward central piece of the lower wing skin.





Assembly of the engine, its supercharger, ancillaries and mounts all appear quite straightforward, I would advise care to ensure all is square with the resin firewall to ensure the original thrust-line and position is correct. The instructions advise the use of wire for various narrow pipes, with dimensions for these being provided.

PE provides the light framework to which the cowl panels would fasten on the real aircraft (Note that the instructions advise the resin cowl panels are not designed for fitment to the airframe). These PE frames will need to be annealed and gently curved to conform to the inner cowl shape and hug the engine’s outline closely. This will possibly be the most challenging part of assembly to get just right.





A couple of choices are provided with the set; fishtail or later round exhaust pipes, and early or late style upper cowl panels.

I have included both CAD and actual images of the finished model from Eduard’s website in the gallery section and below. Please note that the yellow stand the engine is shown mounted on is not included in the kit.







Subject Selection

Although not clear on either Eduard’s website or the engine set’s packaging is that this must be a Merlin 66. As such it is not strictly suitable for use with Eduard’s F Mk.IX kit which represents aircraft powered by either a Merlin 61 or 63 (click here for my recent “first look” at this kit on HyperScale). Not only is the small difference in the crankcase of these earlier engines, the aircraft itself had a small bulge on the starboard cowl panel just below the exhaust like the Coffman starter bulge on a Spitfire Mk.II. The panel supplied with this set does include this bulge. The Merlin 61 and 63 also used S.U. float carburettors, whereas the 66 used a Bendix-Stromberg injection type.
