Curtiss SB2C-3 Helldiver

by Bernhard Schrock



Curtiss SB2C-3 Helldiver




Revell-Monogram's 1/48 scale Helldiver is available online from Squadron.com



Description



This is Revell-Monogram's 1/48 scale Curtiss SB2C-3 Helldiver.

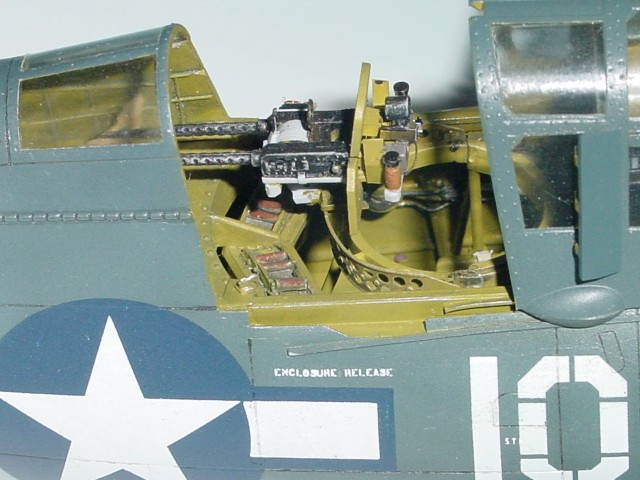

The cockpits are detailed with an resin set from KMC and various additional scratch-built parts.





I corrected the aft section of the canopy-rails, and the turtle deck. The dihedral of the wings was also addressed. The kit angle is about 10 °, but this was corrected to around 7°.

Those big airbrakes were cut open and detailed from scratch, I really "enjoyed" the drilling of many hundreds of precisely aligned holes with different diameters!





Further, I detailed and corrected the landing gear bays and the bomb bay.

The R-2600 engine came from the Medallion Models' TBF detail set. I added pushrods and ignition wires. The cowling was given different details including vanes in the air scoop, interior structural details and cooling flaps-pushrods.





The model represents an aircraft from USS Yorktown. Markings are from Aeromaster.





Additional Images



Click the thumbnail to view the larger image on this page.

[../photogallery/photo191/real.htm]

Text, Images and Model Copyright © 2001 by Bernhard Schrock
Page Created 28 September, 2001
Last Updated 26 October, 2001
