Bf 109 G-6 Wheel Wells

RB Productions, 1/32 scale




S u m m a r y

Details: RB Productions RB-P32003 - Messerschmitt Bf 109 G-6 Detailed Wheel Well
Scale: 1/32
Contents and Media: 64 photo-etched parts; instructions.
Price: 15 available online from Model Design Construction
also available from Eagle Editions' website
and RB Productions online shop
Review Type: FirstLook
Advantages: Beautiful detail; clever design; raised detail for rivets and wheel well lining stitching; major improvement over kit part detail; suitable for G-4 (with wide wheels) G-6, G-14; worthwhile donor kit.
Disadvantages: Some challenging folding and construction.
Recommendation: Highly Recommended

Reviewed by Brett Green

HyperScale is proudly sponsored by Squadron.com




Radu Brinzan is a master modeller with a well-earned reputation for quality and detail, as typified by his recent master for the amazing MDC 1/32 scale Ki-61.

Radu's newest release continues the theme of the first two with a photo-etched wheel well replacement for Hasegawa's 1/32 scale Messerschmitt Bf 109 G. This is the style for the Bf 109 G fitted with the 660 x 160mm wheel fitted to many G-4s and the vast majority of G-6 and G-14 aircraft. Some G-10 aircraft were also equipped with these wheels. These aircraft may easily be identified by the small kidney-shaped bumps on top of the wings.

This new set comprises 64 parts on a single photo-etched fret.


Click the thumbnails below to view larger images:


The small but well detailed instruction leaflet describes the construction process. The biggest challenge will be executing clean curved folds for the various pressed reinforcement channels. A technique for achieving this is included in the instruction, but I recommend practicing on scrap before applying it to the conversion parts.

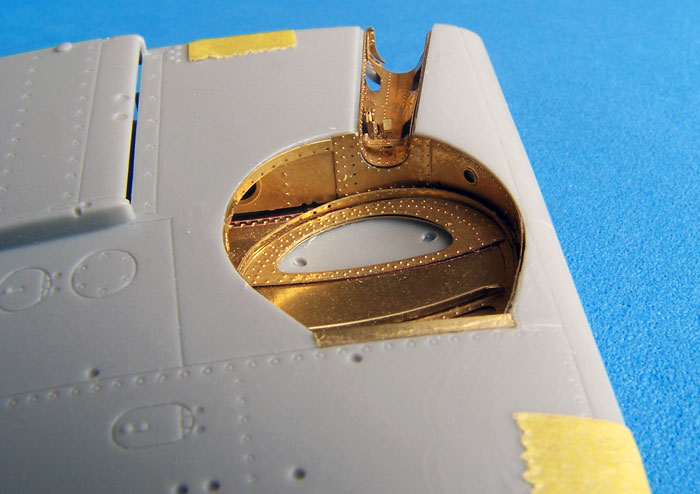

Raised detail will need to be removed from the kit wheel well before installing the photo-etched parts. The two locating holes in the top of the wing will need to be filled too.

Detail on the parts is superb. I especially liked the prominently raised rivets and the stitching along the top and bottom of the "canvas" wheel well lining. Nice stuff.

This is an authentically detailed set which wil greatly enhance the underside of your Bf 109 kits. You will need previous experience working with photo-etched parts, but the results should be spectacular.

Highly Recommended to experienced modellers.

Thanks to Radu Brinzan for the sample

Text Copyright 2007 by Brett Green
Images Copyright 2007 by Radu Brinzan
