P-39 Airacobra
Reconnaissance

Arma Hobby, 1/72 scale

Reviewed by Brett Green

The Bell P-39 Airacobra was a fighter produced by Bell Aircraft for the United States Army Air Forces during the Second World War. It was one of the principal American fighters in service when the United States entered combat.

It had an unusual layout, with the engine installed in the center fuselage, behind the pilot, and driving a tractor propeller in the nose with a long shaft. It was also the first fighter fitted with a tricycle undercarriage. Although its mid-engine placement was innovative, the P-39 design was handicapped by the absence of an efficient turbo-supercharger, preventing it from performing high-altitude missions. It was therefore rejected by the RAF for use over western Europe but adopted by the USSR, where most air combat took place at medium and lower altitudes.

Soviet pilots scored the highest number of kills in the P-39 attributed to any U.S. fighter type flown by any air force in any conflict.

Other major users of the type included the Free French, the Royal Air Force, and the Italian Co-Belligerent Air Force.

* Historical background adapted from Wikipedia

Arma Hobby has launched the latest in their 1/72 scale Airacobra family with the Kit No. 70058, the P-39 Airacobra Reconnaissance.

Arma Hobby's 1/72 scale Bell P-39Q Airacobra comprises 83 parts in grey plastic, five parts in clear plastic, two parts in grey resin, three small chrome balls (nose weight); yellow Kabuki die-cut self-adhesive paper masks, decals for three marking options and a four-piece yellow assembly jig.

•
•
•
•
•

•
•
•
•
•

•
•
•
•
•

•
•
•
•
•

Thumbnail panels:

The grey plastic parts are delivered on two large sprues. Moulding quality is excellent with no flaws or visible moulding imperfections on my sample. The plastic parts boast a luxurious satin texture. Arma’s website advises that long-run metal moulds are used for their kit production, and it really does show.

Being a long-run kit, the parts are moulded with all the alignment aids that you would expect including locating pins, holes, slots and tabs.

I have only found one ejector pin circle and that is only on the inside of an undercrriage door.

Sprue attachments are moulded to the surfaces of the kits so take care when cutting these off and cleaning them up.

Surface textures are just gorgeous. Recessed panel lines, circular fastener heads and other structural details are very fine.

The fuselage is supplied as left and right halves with a few elements that allow some important options.

The most obvious is the forward upper gun cowl panels. Two styles are included with subtle variations.

Some cockpit structural detail is moulded directly to the inside of the fuselage halves. Additional separate parts include a plastic cockpit floor, throttle quadrant; instrument panel, a moulded pair of rudder pedals, control column, radios and more.

The instrument panel features raised detail that will respond well to careful dry brushing.

As an alternative, an overlay decal is supplied for the instrument panels and switch panel.

Harness strap decals are included as well.

Three small chrome metal balls are supplied as nose weight. These are placed into recesses above the front landing gear bay.

Exhausts are moulded as one-piece per side. The ends are moulded solid - perfectly understandable in this small scale.

The wing parts are full span lower and separate port and starboard halves for the top. They are suitably thin at the trailing edges. Aileron hinge lines are appropriately heavier than the general panel line detailing.

The wheel wells are nicely detailed between the upper wing halves. The are presented as one piece each and feature very fine raised letter on the sidewalls. Tyre tread is smooth. The wheels are subtly bulged and flattened.

Elevators and rudder are separate parts and may be posed to taste.

The tail wheel and strut are moulded as a single part. Detail looks good.

Ordnance includes two underwing gun pods, a pair of drop tanks, 100 kg bombs and 250 lb bombs.

The canopy parts are thin and clear.

The two side doors are moulded as clear parts. They may be posed open or closed. Note that pilot entry and egress was usually from the starboard side. Self-adhesive die-cut masks are supplied for the windows, canopy and wheels. This is a thoughtful and time saving touch.

A number of additional parts and unused options are included on the sprue such as alternative exhausts, three different styles of propeller and more.

Instructions are supplied as a 12 page stapled A5-sized booklet.

The kit is packed into a end-opening cardboard box. I have to say that I have never been a fan of end-opening boxes - access to the parts is more difficult, loose parts can easily be lost while retrieving instructions or a larger sprue, and the format is less structurally rigid, inviting the contents to be crushed when the box is inevitably at the bottom of a pile of kits.

I know it is a nit-pick but I would prefer to see future Arma Hobby releases in a lid-style of box.

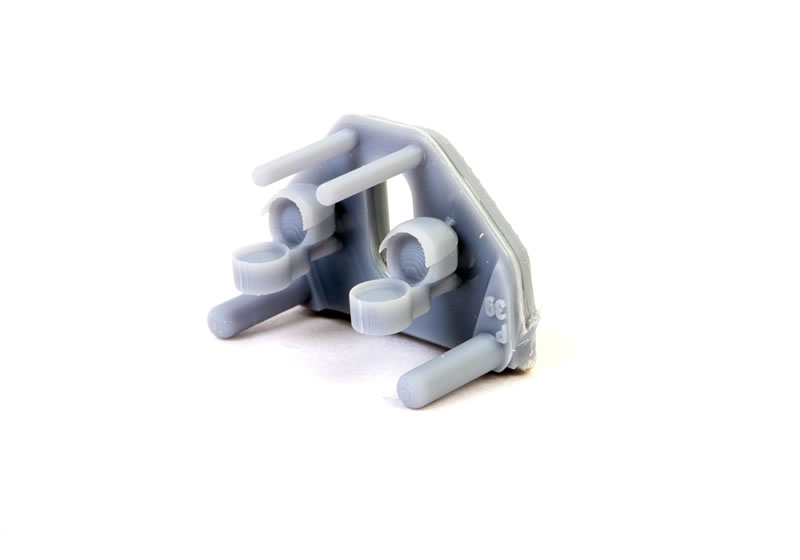

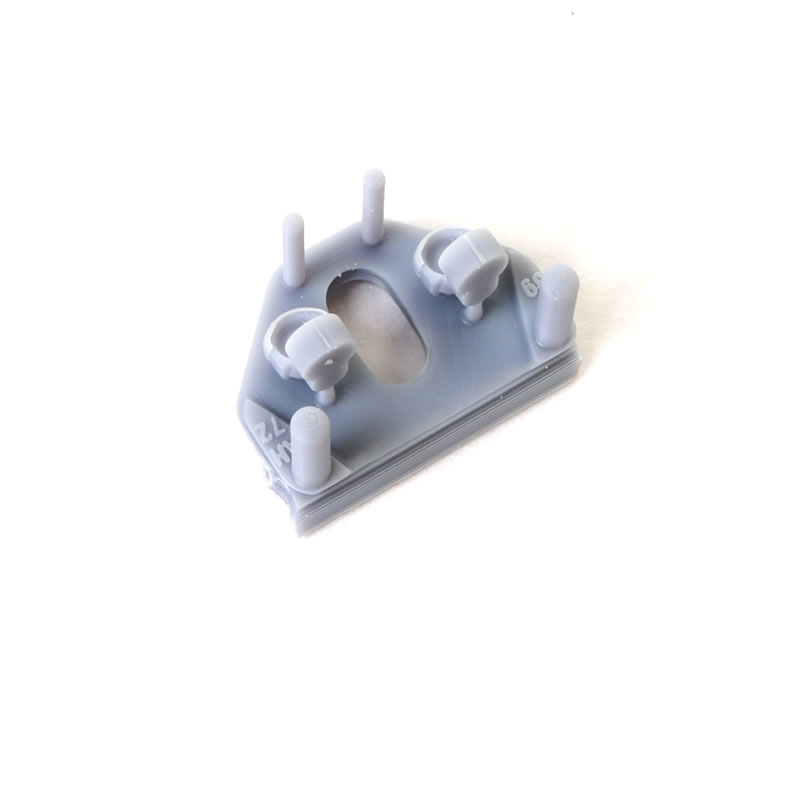

The grey resin parts are for the downward-facing camera and a template to guide the modeller when cutting out the capsule-shaped opening in the lower fuselage.

Marking Options

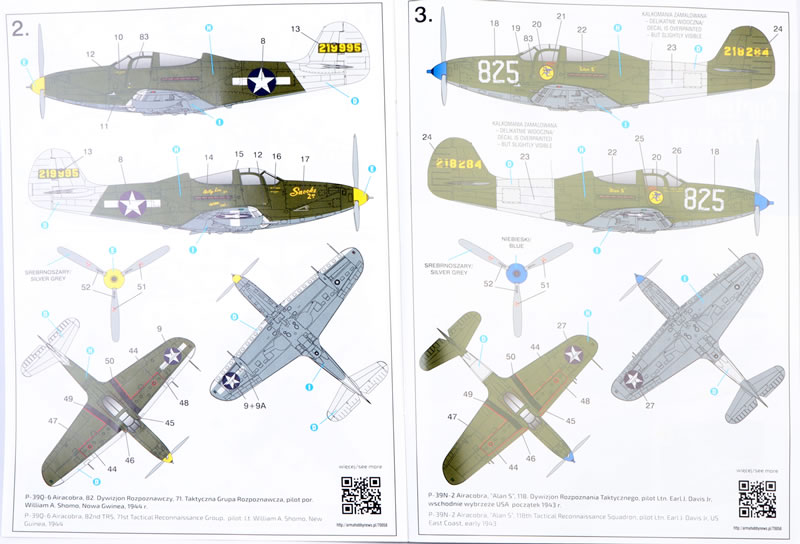

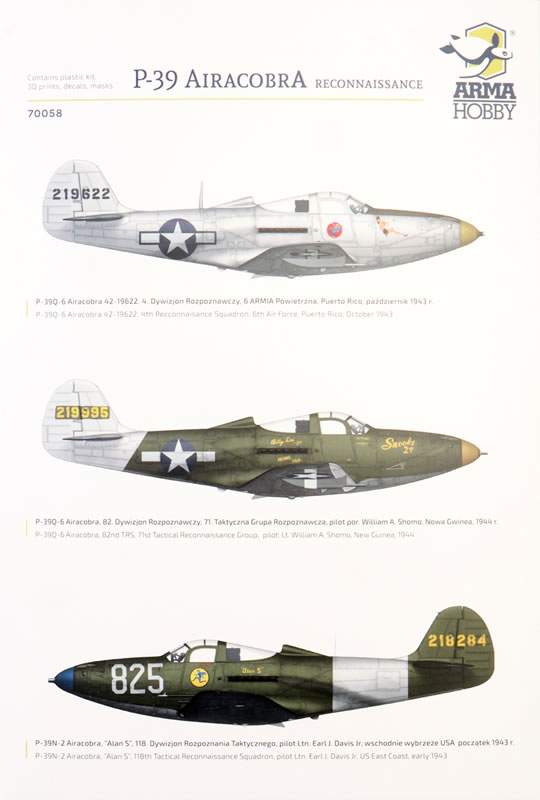

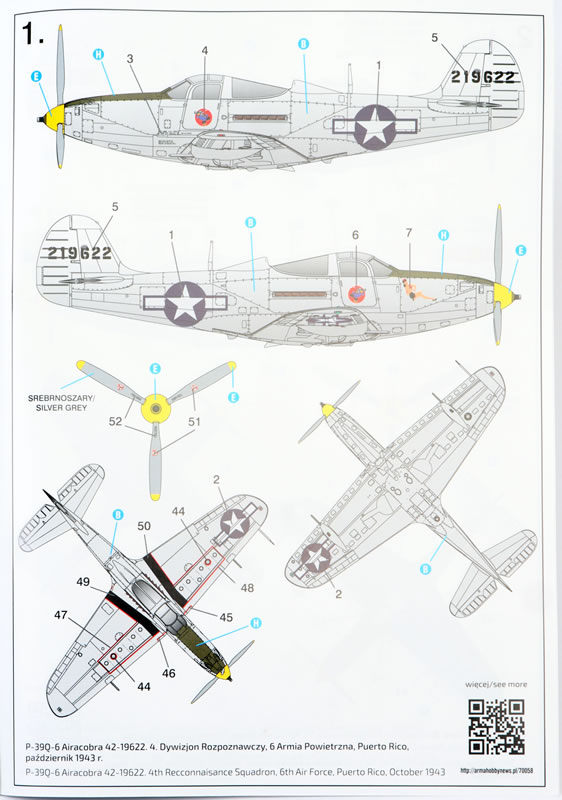

The kit decal sheet offers markings for three options.

Stencil markings are printed on the same single sheet, as are propeller logos and wing walk markings.

Decals are printed by Techmod.

They are glossy, colours are well saturated and everything is in perfect register.

P-39 Airacobra 1/72 Assembly Jig (available separately)

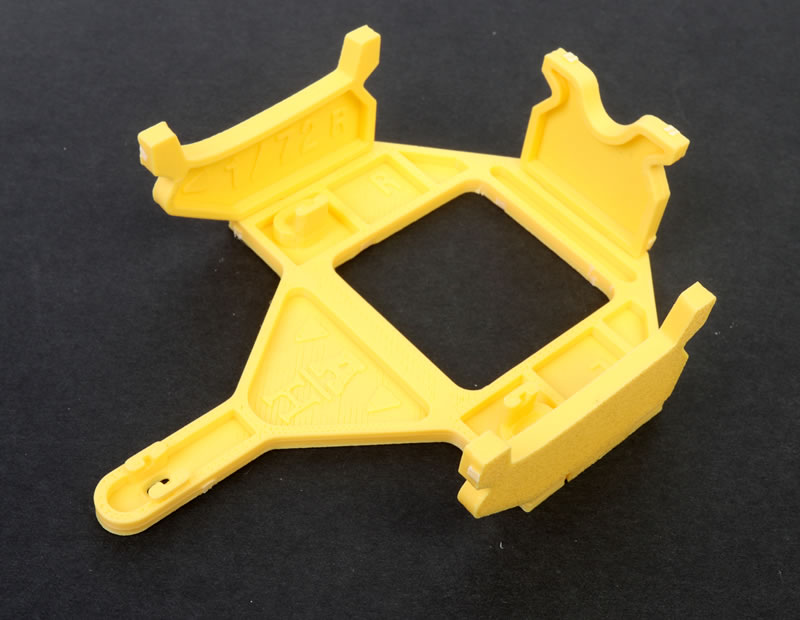

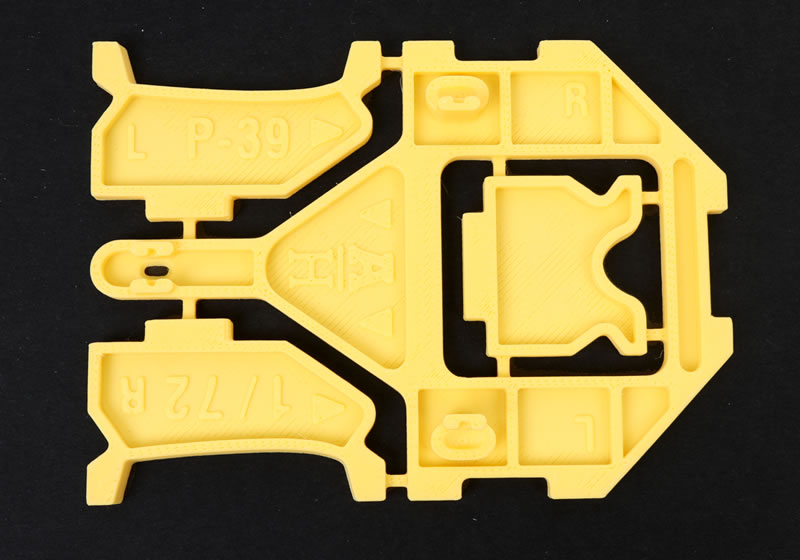

Arma Hobby is also offering separately a 4-piece yellow plastic assembly jig. This will ensure perfect landing gear alignment and will be a useful guide for dihedral. It will be a safe way to handle the model in the final steps of assembly too.

hTe jig will also ideal for safe transport to competitions or club meetings—secure the model with rubber bands and attach the jig to a transport box with double-sided tape.

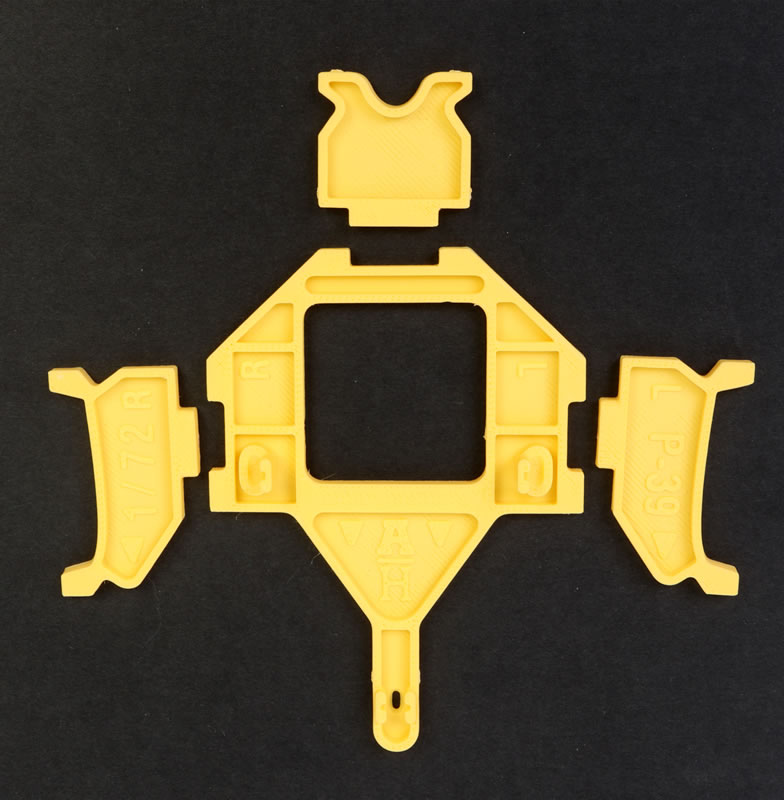

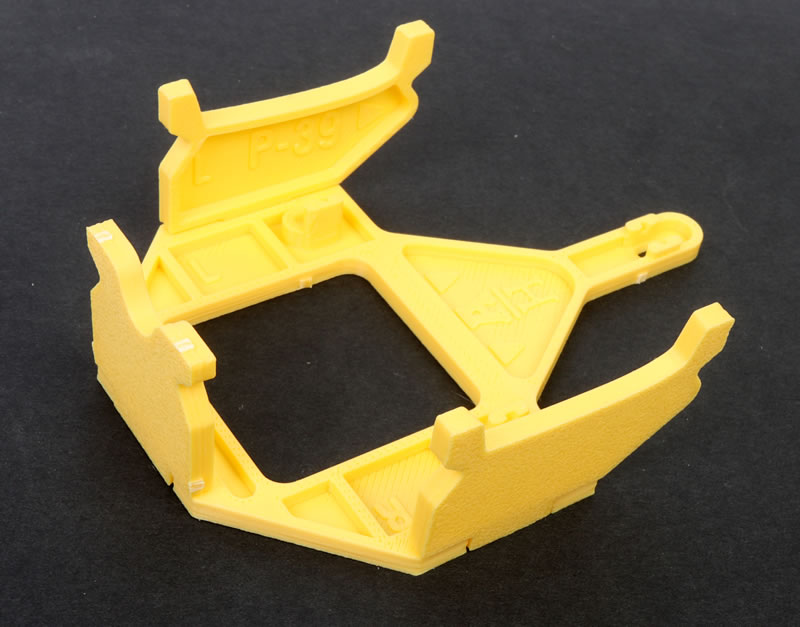

The jig comprises a base, rear and side supports. The base features raised mounting points to locate the undercarriage legs. as the glue sets.

Assembly is by way of large locating tabs and recesses.

Although the material is labelled as plastic, it does not respond to my Tamiya liquid cement. I think it will be safest to assemble the four parts using super glue or two-part epoxy glue.

Instructions are not provided but there are arrows and text clearly cast onto the plastic parts that will ensure correct orientation.

The jig is available exclusively from Arma Hobby's web store for €5.45

Arma Hobby's brand new 1/72 scale P-39 Airacobra is a gorgeous kit with its crisp surface textures, high moulding quality, thoughtful parts breakdown, useful options and very high level of detail.

Although not all the options on the sprues are mentioned in the intructions, you will be able to build most Airacobra variants from the parts in the box.

This is a another excellent offering from Arma Hobby.
