The Last Of The Butcher Birds
Dragon's Focke Wulf 190D-9 Gets The "Engines and Things" Treatment
By Brett T. Green
When I received the "KommanDeur" decals for Focke Wulf 190Ds, I knew that I would have to use them soon! After some consideration, I decided to tackle a project, which would let me check out a number of accessories at the same time.

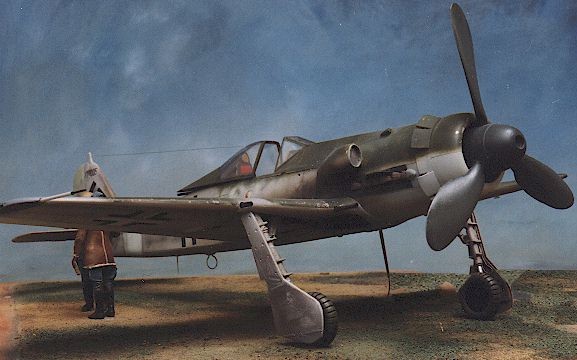

I chose to model a 1/48 scale FW190D-11 using the "Engines and Things" conversion, the Cooper Details cockpit, True Details bulged mainwheels, "KommanDeur" decals and finished in Aeromaster's new Acrylic range of paints.
The "Engines and Things" FW190D-11 conversion is based on the Dragon FW190D-9 kit. I test fitted the upper deck section on the Tamiya kit, but it would have required major surgery.
I approached this project with some trepidation. Previous Dragon kits I have built include their FW190A-8, Ta152H, Ju88G and Me262A, which all shared universal characteristics - accuracy, good detail, value for money and rotten fit.
The "Engines and Things" conversion is quite simple. The main differences between the D9 and the D11 variants are a flat upper engine deck panel (with 13mm MGs deleted), spinner with provision for 30mm cannon (not fitted on my example); paddle bladed wooden VS10 propeller blades and 30mm cannon in the outboard weapons location in each wing.
"Engines and Things" provide resin replacement parts for all of these components, plus an optional spinner with 20mm cannon. Inexplicably, they also provide a resin replacement for the open cowl flaps and the forward cowl ring. These parts have obviously been cast from the donor Dragon kit, and are unnecessary, as the kit parts are identical. Even corresponding ejector pin marks are present on the inner surfaces of the resin parts!
The resin parts are cast in medium grey and have a slightly "orange peel" effect on the surface. This is easily corrected by light sanding and polishing.
With some careful planning, this conversion can be undertaken with only minimal cutting of the donor kit parts.
I started with the wing mounted 30mm cannon. Bulges are provided for the upper and lower surfaces of the wing. I sanded the base of the upper wing bulges down to paper thickness, then simply superglued them to the wings as indicated in the instruction diagram.
The lower wing bulges are cast complete with the access panel. The installation of the complete panel would require some complex cutting, as the panel lines on the kit wings do not correspond to the shape of the replacement part. I decided the best solution would be to build up the simple bulge shape from Milliput in situ on the wing. I masked a rectangular area on the wing using 6mm Tamiya masking tape. This area corresponded to the dimensions of the lower wing bulge. I then built up the bulge from small balls of Milliput blended together. I made sure that the first attempt was larger than the final bulge size to allow sanding and shaping when the Milliput had dried.
The instruction diagrams for the lower cannon fairing are misleading as they represent the bulge and ejector chute arrangement for the 20mm cannon. For the correct dimensions and positioning, refer to the lower wing diagram of a FW190F on page XX of Aero Detail X.
The fairings for the shell ejector chutes are present on the Dragon kit. These should be cut open, but don't forget to fair over the inside with plasticard before joining the wings.
Finally, I opened the flashed over holes in the wing leading edge to allow the later installation of the cannon barrels.
The cockpit was the next area to get some attention.
Even though the Dragon cockpit is nicely detailed and quite accurate, I decided to install the Cooper Details generic FW190 cockpit detail set. Roy from Cooper has provided the modeller with three different instrument panels, a number of side consoles and an auxilliary switch panel in addition to the full cockpit tub and other parts common to all versions. These options allow the modeller to accurately represent most variations from FW190A1 to FW190A9, plus the "F", "G" and the "D" Series Butcher Birds. A photo-etched fret is also included, with harnesses and various cockpit levers.
Casting is up to the usual exceptional standards set by Cooper Details. Parts removal and cleanup is a minor task.
The one-piece cockpit tub has some very nice detail moulded onto the floor and some clever resin undercuts - all of which disappear in to the dark recesses of the invisible aircraft interior once the fuselage halves are joined.
Assembly of the cockpit is very straightforward. Just make sure you get the side consoles on the correct sides and the right way around!
The only extra detail added was the linkage on each rudder pedal as suggested by the Cooper Details instructions. I added lap harnesses at this stage but left the shoulder harnesses until after the fuselage was joined and the tub installed.
The cockpit was now spayed in Dark Grey with various switches; levers and instruments picked out in black, white red and yellow. Tamiya silver enamel was sparingly applied to depict scratches on the seat and floor.
To complete the interior, I applied a blob of Krystal Kleer to each instrument to represent glass lenses. In retrospect, I probably should have used a clear 2-part epoxy adhesive such as Araldite for this job as it would have provided a harder, "glassier" finish.
The cockpit tub should NOT be installed yet!
My earlier fears about poor fit were confirmed upon examination of the fuselage. When the fuselage parts were dry fitted at the rudder, each half bowed outward like an open banana peel. The soft grey plastic had warped considerably in storage or in transit. Also, the lack of positive location pins, plus pins being located in the wrong positions, was clearly going to complicate fuselage assembly.
Before joining the fuselage halves I prepared the inner fuselage for the Cooper cockpit tub. All interior detail and locating points were removed with the exception of the small "L" shaped locator on each fuselage half. This corresponds pretty well with forward position of the Cooper tub, and will ensure that the tub is sitting square.
The interior of the Doras upper sidewalls were fairly spartan. I first thinned the top of the canopy opening and built a new canopy rail on each side of the canopy opening using styrene strip. Strip styrene was also used to represent structural features and the prominent canopy jettison handle. The resin canopy crank provided in the Cooper Detail set was now added.
The fuselage was now ready for assembly. Starting at the rudder and moving forward, the fuselage halves were joined with Testors cement and temporarily taped with Tamiya masking tape.
In the meantime, the wings and wheel bays were assembled according to instructions.
Take care to align the upper and lower leading and trailing edges. If your example is like mine, and there is an overhang on one of the wing edges, make sure that you glue the wing with the overhang on the leading edge. It will be much easier to fill and sand the leading edge than reshape the sharp trailing edge.
I dry-fitted the wings and fuselage after the sub-assemblies had thoroughy set. The correct dihedral of the wing is guaranteed by the lower surface of the one piece wheel well. However, when the wings are mated with the fuselage I had a 1mm to 2mm gap for the length of both wing roots. Because I didn't want to change the dihedral angle I had two choices:
a) Fill the gap with Milliput or similar (Aaargh!) or
b) Install spreader bars in the fuselage.
I chose the latter.
In this instance I needed two spreader bars - one at the front and one at the rear of the fuselage wing root. I am not particularly scientific with spreader bars. I usually cut a section of sprue slightly longer than I think will be needed. I then test fit the spreader bar, dry fit the wing, trim or move the spreader bar and continue the process until the gap disappears. Superglue can then be flowed around the joins between the fuselage and the spreader bars.
Before you commence the process make sure that the fuselage assembly is thoroughly dry as the spreader bars will place a great deal of stress on the fuselage join.
The position of my rear spreader bar fouled the correct positioning of the cockpit tub. I took a wedge of resin off the bottom rear of the tub with a razor saw, taking care not to cut right through the completed cockpit. This was enough to allow the tub to be positioned inside the fuselage assembly. The front of the tub sits on the "L" shaped lugs, while the seat rails in the rear of the cockpit should line up with the rear deck.
At the same time as jiggling the cockpit tub, I superglued the photoetched cover for the rear deck. Don't forget to fold all the little locators. They will help determine the correct position of the photoetched part (and they look good too!)
With the spreader bars in place, the gap between fuselage and wing disappeared, but a slight step was created at the forward wing root (The upper surface of the wing was higher than the fuselage wing root). I fixed this with a sausage of Milliput laid in the problem area and smoothed with a small, wet trowel. A wet finger would probably do the job just as well. A little sanding after 24 hours is all that is needed to finish a perfect join.
The only other filling required was at the lower wing fillet. The rear spreader bar had pushed out the fuselage half at this point, so once again Milliput was used to fill and reshape the lower rear wing fillet.
THE SUBJECT AIRCRAFT
FOCKE WULF 190D-11
DOUBLE CHEVRON OF STAFF FLIGHT, JV44
WERK NUMMER 220005
The excellent new book "JV44 THE GALLAND CIRCUS" by Robert Forsyth, contains a photograph of the subject in deteriorating condition at Bad Worishoven, August 1945.
The light paint on the fuselage extension and the extent of use of the brown-violet paint patches on the upper rear fuselage are clearly indicated. There is also no evidence of stencilling on this aircraft.
Even though the exhaust staining on the mid fuselage side does not appear to be present in this photograph, it is clearly present on the side of the engine cowling. Either the sooty stain has been wiped clean by sightseeing allied servicemen, or the reflection is hiding the stain. However, I believe that, when the aircraft was in service, this typical heavy staining would have been present along the length of the fuselage as represented on my model.
Also the reflection off the undercarriage covers indicates to me that in addition to the forward lower wing, these covers were also left in a natural metal finish.
With the fuselage and wings assembled, it was time to test out those new Aeromaster Warbirds Acrylics. The colours are terrific - almost any colour that a Luftwaffe modeller would need is available. This particular machine was finished in 75/82/76 with a smattering of brown-violet on the rear fuselage.
This aircraft also featured various shades of late war Luftwaffe "sky" shades. The rear fuselage extension is a very pale shade. The leading edge of the underside of the wing is in natural metal.
Unfortunately, I found that the new Aeromaster acrylics did not spray easily. The only thinner that works with Aeromaster paints is distilled water. Not even plain water. Definitely not alcohol based thinners, methylated spirit, lacquer thinners or Tamiya Acrylic Thinners. If anything but distilled water is used, the paint will congeal and string, clog up your airbrush and make a mess of your model. At least that is what happened to me!
Even when distilled water is used, I found the results less than satisfactory for fine lines and mottles. The overspray was far less controllable than either Tamiya or Gunze paints.
In future, I will use these paints only for large areas of solid coverage, such as undersides or the base colour of a two-tone camouflage scheme. I may also use them on the rare occasion when I am masking a pattern.
In this example, I did use the Aeromaster paints, but tidied up later with my own mixes of Tamiya and Gunze paints.
Weathering was a combination of a heavily sprayed exhaust staining and paint "chipping" courtesy of Tamiya Chrome Silver Enamel sparingly hand painted with a fine brush.
By contrast, the KommanDeur decals were superb. Register is perfect and they go on like a dream. The research and colour information is well supported, even if it is contestable in a couple of examples. I had a little silvering on the upper wing crosses, but this was my fault as I spent too much time jiggling the buggers around to get them aligned properly. I fixed the problem easily by masking around the white part of the decal with Post-It Notes, and spraying the insides of the crosses in the camouflage colours.
Following painting, I prepared the dangly bits for final assembly. I replaced the plastic machine gun barrels and pitot tube with brass tube, and added fusewire brakelines to the undercarriage legs.
Fixing the undercarriage components was another Dragon "bad-fitting" nightmare. The main undercarriage legs fit very loosely in their mounts. This makes it very tricky to correctly position the correct toe-in angle for the main undercarriage legs. To make matters worse, I could not get the retraction struts to fit sensibly. I made do with something that looks okay, but will not pass close inspection.
Finally, I prepared the canopy for its antenna wire. I drilled out the locating hole in the top of the canopy, the secured a length of monofilament to the inside of the canopy. I mounted the headrest and slid the canopy onto its rail. I paced the canopy in the open position and measured the correct length of the cable. I then opened the canopy further, superglued the loose end to the rudder mast and returned the canopy to the normal open position - thus tensioning the antenna.
The kit itself presented far more complications than the conversion. The paint proved to be a disappointment but I will continue to look for a thinner that will allow me to take advantage of the wonderful colour range; however the KommanDeur Decals were an unqualified success. Only eleven more FW190D subjects left on the sheet!
(Ref: "JV44 THE GALLAND CIRCUS" by Robert Forsyth, Classic Publications, West Essex, England, 1996. p.203)
Article and photographs Copyright 1998 by Brett Green.
